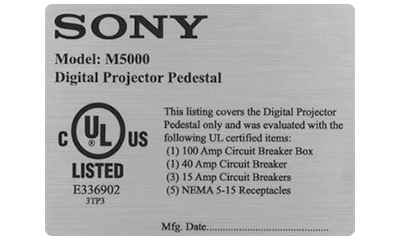

UL Label
More images  Click Here

UL® Recognized Label Component Systems And Printing The UL® Mark

A UL® label must meet UL® specifications and be produced under a recognized file to be considered a UL® recognized component on your product. We can meet your UL® label needs when either or both of these features are required:

- UL® requires you to use approved materials in recognized component systems.
- You would like to print the UL® mark (UL® bug) and have a stamped approval from UL® for your artwork.

Ready for an instant online quote? Custom UL® labels and parts feature:
- Any size - any shape - any design
- No die charges - no set up fees
- 4 day or less production
- Minimum quantity is 1

  • Product Information
  • Get Instant Quote
  • Product Examples
  • Why Maverick?

Clearing the UL® Label Confusion

  • Underwriters Laboratories Inc.® (UL® ) certification and recognition are often confusing and misinterpreted. These are the separate UL® areas:

    - Materials (Recognized Label Component Systems)
    UL® tests and certifies label materials against specific safety standards for use on final products required to be UL® approved. See box regarding UL® recognized materials.

    - Printing the UL® Mark (UL® bug)
    The UL® mark (UL® bug) is a symbol of safety and cannot be used without UL® 's approval. Printed UL® marks that will be placed on a UL® approved product will need to be printed using a Recognized Label Component System.

    • UL Label

    • The UL® Label Dictionary
      This is our great, FREE, resource for getting your arms around UL® terms and basic requirements for UL® labeling.

      Open The UL® Label Dictionary

  • UL® Recognized Label Component Systems:

    UL® recognized label component systems

     UL® requires you to use a recognized label component system
     We offer UL® recognized systems - tested by UL® under file #MH29620. A UL® recognized component is linked to the finished product. The label itself must be a recognized component because it is part of the finished UL® product. Certain combinations of UL® recognized materials and inks that we offer under file #MH29620 are UL recognized label construction, referred to as a component. A UL® recognized label component is not a UL® recognized product. You MUST obtain UL® recognition for your specific product to use the UL® certified marks identifying your product as UL® product.

    Available Materials:
    2 mil clear polyester
    2 mil gloss white polyester
    2 mil metalized matte silver polyester
    2 mil metalized brushed silver polyester
    2 mil metalized shiny silver polyester
    1 mil clear polyester over-laminate
    5 mil clear Lexan® over-laminate
    10 mil clear GE Lexan®
    2 mil 3M 467MP adhesive (for Lexan®)
    5 mil 3M 468MP adhesive (for Lexan®)

    Learn more about the recognized label component system we offer under file #MH29620

    Printing The UL® Mark:

    You Need To Print The UL® Mark
    The UL® mark (UL® bug) is a registered trademark and cannot be used without UL®'s approval. Contact your UL® representative with your final artwork to obtain a stamp of approval from UL®. You will provide us this stamped artwork file in addition to your digital artwork file when you order.

    Printed UL® mark labels that will be placed on a UL® approved product will need to be printed using a Recognized Label Component System.

    We offer UL® Type "R" Mark labels that are printed under file #PGAA.LP3744, which are approved by UL®. For us to do so, you must have a UL® approved design with a stamp for verification.

    We also offer Type "L" Mark - listed or classified labels under file #PGAA.LP3744, which are approved by UL® when done in direct connection with UL®.

    To learn more about UL® requirements for printing the mark, please visit
    http://www.ul.com/global/eng/pages/corporate/aboutul/ulmarks/mark/design/

    UL® Tested Materials:

    Use of UL® Tested Materials

    What is the difference between "UL® Recognized Materials" and "UL® Recognized Component Systems"?

    Many label suppliers offer what they call "UL® Tested Materials" or "UL® Recognized Materials", for example, they might offer a UL® recognized polyester base material. Note that this is just a recognition by UL® that the material has met certain criteria. It does not mean that if you use all UL® recognized materials that your final label (base material, adhesive, ink, over-laminate) will be a UL® Recognized Component System. To achieve that status, UL® must test all of the components, at the same time, as one final construction. Please refer to our "UL® Recognized Label Component Systems" info box for this. Be cautious about vendors that say they offer UL® Recognized Component Systems when all they offer is individual UL® Recognized Materials.




Select Size : ⓘ

Width (inches)		  X
Height (inches)		 Custom Shape label

  • I have cutouts in my label  ⓘ

Select Material : ⓘ    See Material info



Select Laminate : ⓘ
 None  1 mil Matte Polyester
 1 mil Gloss Polyester  LexSaver® 5 mil velvet




Select Color : ⓘ Color Palette
Select Roll or Pieces : ⓘ
  • label on Roll
  • label on roll
  • pieces of label
  0.1" (1/10") gap 0.5" (1/2") gap Pieces



Select Variable Data : ⓘ

Enter Quantity : ⓘ
  • ✖   Please Enter Quantity

Proof :   Proof & Artwork Policy ⓘ

Proof adds 1 or 2 days to process time.



Total Price:
Quantity:
Width x Height:
Material:
Laminate:
Adhesive:
Adhesive Free Area:
Cutouts:
Color:
Variable Data:
Roll or Pieces:
Proof:
UberQuoter® U.S. Patent #7590566

  • MaverickLabel.Com - The Informed UL® Choice !


    Ordering UL® labels, components or items with the UL® mark can be a daunting task. We've helped hundreds of companies to find the right UL® solutions. Here's some essential information based on our experience and our customers' experiences with UL®.

    UL® Examines, Tests and Reviews Specific Products
    Confusion begins when the materials used in a product are looked upon as products in themselves. As an example, what if you needed to design or order a new control panel overlay for an electrical device that was to be made of the polycarbonate Lexan®. Is the control panel certified because it is comprised almost entirely of the UL® certified material Lexan®? For clarification, please read on.


    The UL® Certified Mark
    Only those products with the UL® mark should be listed and covered by UL®'s Follow-up Service. Always look for the UL® mark on the product.


    UL® Recognition
     UL® investigates product equipment for the Listing/Classification. Their investigation includes an evaluation of suitability of components, relays, and switches, for use in the specific end product. The acceptability of the Component requires compatibility with the end-product application.


    Start your instant online quote

  • FlashlightShedding Light On
    UL® Label Confusion

    Underwriters Laboratories Inc.® (UL® ) certification and recognition are often confusing and misinterpreted

    These are the foundations of what UL® does:

    - UL® Examines, Tests and Reviews Specific Products
    - The UL® Certified Mark
    - UL® Recognition.

UL® label solutions for UL® recognized label component systems and printing the UL® mark. Quantity & turnaround times vary.

  • Custom Printed Product
  • off the shelf products
  • laser & inkjet products
  • Label Finder Wizard
  • Match My Label
  • Help using Our Site
Marking and Labeling Systems - Recognized Components

"LabelServe Poly-150 Gold", "LabelServe Poly-150 Silver", "LabelServe Poly-150 White", "LabelServe Poly-150 Clear", "LabelServe Poly-150 Clear-OL".
Affixed to aluminum, galvanized steel, stainless steel, acrylic paint, alkyd enamel, epoxy paint, polyester paint, polyester powder paint, porcelain, maximum temperature rating 150 C (302 F), minimum temperature rating -40 C (-40 F); melamine plastic, nylon, phenolic, polycarbonate, polyethylene, polystyrene, polyvinyl chloride, unsaturated (thermoset) polyester and polyphenylene oxide, maximum temperature rating 100 C (212 F), minimum temperature rating -40 C (-40 F); polypropylene plastic, acrylonitrile butadiene styrene (ABS) plastic, polybutylene terephthalate (PBT) plastic, maximum temperature rating 80 C (176 F), minimum temperature rating -40 C (-40 F); EPDM rubber, maximum temperature rating 40 C (104 F). Suitable where exposed indoors to high humidity or occasionally exposed to water.

"LabelServe Poly-125 Clear".
Affixed to aluminum, galvanized steel, stainless steel, acrylic paint, alkyd enamel, epoxy paint, polyester paint, polyester powder paint, porcelain, maximum temperature rating 125 C (257 F), minimum temperature rating -40 C (-40 F); melamine plastic, nylon, phenolic, polycarbonate, polyethylene, polystyrene, polyvinyl chloride, unsaturated (thermoset) polyester and polyphenylene oxide, maximum temperature rating 100 C (212 F), minimum temperature rating -40 C (-40 F); polypropylene plastic, acrylonitrile butadiene styrene (ABS) plastic, polybutylene terephthalate (PBT) plastic, maximum temperature rating 80 C (176 F), minimum temperature rating -40 C (-40 F); EPDM rubber, maximum temperature rating 40 C (104 F). Suitable where exposed indoors to high humidity or occasionally exposed to water.

"LabelServe LexPoly Gold", "LabelServe LexPoly Silver", "LabelServe LexPoly Clear", "LabelServe LexPoly White".
Affixed to aluminum, galvanized steel, stainless steel, acrylic paint, alkyd enamel, epoxy paint, polyester paint, polyester powder paint, porcelain, melamine plastic, nylon plastic, phenolic plastic, polycarbonate plastic, polyethylene plastic, polystyrene plastic, polyvinyl chlorideplastic, unsaturated (thermoset) polyester plastic, polyphenylene oxide plastic, maximum temperature rating 100 C (212 F), minimum temperature rating -40 C (-40 F); polypropylene plastic, acrylonitrile butadiene styrene (ABS) plastic, polybutylene terephthalate (PBT) plastic, maximum temperature rating 80 C (176 F), minimum temperature rating -40 C (-40 F); EPDM rubber, maximum temperature rating 40 C (104 F). Suitable where exposed indoors to high humidity or occasionally exposed to water.

"LabelServe Sublex".
Affixed to epoxy plastic and polyester paint, maximum temperature rating 100 C (212 F), minimum temperature rating -40 C (-40 F); aluminum, galvanized steel, alkyd enamel, polyphenylene oxide, nylon and acrylonitrile butadiene styrene (ABS) plastic, maximum temperature rating 80 C (176 F), minimum temperature rating -40 C (-40 F); stainless steel, porcelain, polyurethane paint and polycarbonate, maximum temperature rating 60 C (140 F), minimum temperature rating -40 C (-40 F); polyethylene terephthalate plastic, maximum temperature rating 40 C (104 F), minimum temperature rating -40 C (-40 F). Suitable where exposed indoors to high humidity or occasionally exposed to water.

UL® Dictionary

CERTIFICATION MARK - A generic term intended to include the UL® Listing Mark, Classification Mark, Recognized Component Mark and Recognized Markings. Authorized use of a UL® certification mark by a manufacturer is the manufacturer's declaration that the product was produced according to the UL® requirements in effect at the time of manufacture and subject to UL® 's Follow-Up Service.

RECOGNITION SERVICE - A service whereby UL® determines that a manufacturer has demonstrated the ability to produce a component for use in an end product that complies with UL® 's requirements. It takes into account the performance and constructional characteristics of such end product insofar as this can be determined and the areas that require additional consideration for application of the component to the product. UL® authorizes the manufacturer to use the UL® Recognized Marking on components that comply with UL® 's requirements and establishes a Follow-Up Service conducted by UL® as a check of the means the manufacturer exercises to determine compliance with UL® 's requirements.

RECOGNIZED COMPONENT - A part or subassembly covered under UL® 's Recognition Service and intended for factory installation in UL® certified products. Recognized Components are incomplete in certain construction features or restricted in performance capabilities and not intended for separate installation in the field, rather they are intended for use as components of incomplete equipment submitted for investigation by UL® . Final acceptance of the component in the complete equipment is dependent upon its installation and use in accordance with all applicable use conditions and ratings noted (1) in the component report issued by UL® , (2) in the Guide Information and (3) in the individual client's Recognized Component Information Page.

COMPONENT - A portion of a product that is subject to separate test performance and/or construction requirements in addition to those applied to it during the complete product investigation. A component may be either Listed, Recognized, or described as an Unlisted Component.

LISTED PRODUCT - A product that has been produced under UL® 's Listing and Follow-Up Service program in accordance with the terms of UL® 's Service Agreement and that bears the UL® Listing Mark as the manufacturer's declaration that the product complies with UL® 's requirements.

UNLISTED COMPONENT - A component used in a Listed (or other) product which is separately investigated for a product manufacturer as a component of the complete product using appropriate requirements applicable for Listing (or other) of the part, but for which no published recognition is requested.

RECOGNIZED MARKING - The marking that a component manufacturer is authorized to apply to a component manufactured under UL® 's Recognition Service. It consists of the Recognized company identification/name and catalog number, model number or other designation. The UL® Recognized Component Mark may be used in conjunction with the Recognized Marking.

Cutouts: Coutouts

Internal cutouts are all cuts in addition to the perimeter of your label.
Tolerance for perimeter and all internal cutouts is +-.010"

Questions? Contact CustomerCare.

Enter Quantity:

Enter the quantity of pieces you want to quote. Volume discounts will also be displayed.

Questions? Contact CustomerCare

Select Size:

Enter the overall dimensions of your finished piece here.

Questions? Contact CustomerCare.

Select Laminate:

These overlaminates can be applied after printing to most materials (except Lexan®). They provide additional protection, and can create a high gloss or matte finish. Note that for most applications, they are not required for protection of labels. The Lexsaver® overlamination process can be used on printed polyester or vinyl as an alternative to subsurface printed Lexan® for creating nameplates or control panels. Clear overlaminates are not available on Lexan® substrate material.

Questions? Contact CustomerCare.

Select Material:

Select the material to be used in printing your custom artwork. Based on the materials, overlam, and ink colors specified during the quoting process, we will determine which UL® Recognized Label Component System is to be used.

Questions? Contact CustomerCare.

Select Rolls, Sheets or Pieces:

UL® labels are available in pieces or on rolls with a small gap (less expensive) or a large gap to allow for cutting into individual pieces.

UL® Labels on rolls are approximately 12" wide with multiple labels along the edge, depending on your label size. No core is provided. UL® Label Rolls are not intended for machine application.

Sheet labels ship to you flat with as many labels per sheet as possible.

Piece labels are shipped to you in stacks of individual labels – not on rolls not sheets.

Questions? Contact CustomerCare.

Select Variable Data:

Serial Numbering:
Numbers (with or without barcode) that count up sequentially from a given start point. May contain a prefix before the serial number or a suffix after the serial number. A file is NOT required.

Data File / Merge:
Preassigned data or non-sequential numbers (with or without barcode). Must be provided in Excel or text file format. File upload will be requested at checkout.

Questions? Contact CustomerCare.

Select Color:

Please choose 1 or more printing colors from the color chart:
Please note that velvet finish Lexan® and other overlams affect the look of the pms colors
printed underneath.
If you need an exact color match, we recommend a prototype with your order.

Questions? Contact CustomerCare.

Apply Clear Tape:

Review the images below to better understand how clear tape application can be used.

Clear Application Tape is used as an aid to position your label while applying it to the surface of your product. Once the label is adhered, the clear application tape is removed and discarded. Application tape is not intended to be part of the finished product and is therefore not UL® recognized.

Select Adhesive:

We offer your choice of two 3M adhesives to suit your needs:

-3M 467 – 2 mil adhesive smooth surface
 -3M 468 – 5 mil adhesive rough surface

Have questions? Please contact CustomerCare.

Proof Policy

We strongly urge you to request a proof. Digital web proofs are free.

How The Proof Process Works:
• Within 24-48 hours (not including Saturday, Sunday, or Holidays) of receipt of your artwork, you will receive an email with proof instructions.
• The email will include a link to your proof and instructions for approving or indicating changes to your proof online.
• If you make changes, a new proof will be prepared and you will be emailed once the revised proof has been posted.
• We will notify you of any charges due to artwork modifications before we start production.
• Once approved, your artwork is immediately sent to production.

IMPORTANT
If you waive a proof by selecting “No Proof” your order will be released to production immediately. No changes or alterations to your order will be possible. Any changes to or cancellation of a “No Proof” order will be charged for the full price of job. We are not responsible for artwork related errors or color variations in the finished product if you select “No Proof”.

ARTWORK INFORMATION AND POLICIES
• Artwork touching the edge of the design must extend at least 1/8” beyond the die-line in the art file for products allowing bleeds.
• We strongly urge you to provide a 300dpi or higher file in .pdf format. (low resolution artwork pulled from the web will not work)
• If You Are Not Providing a pdf file:
    • We can work with the most recent Macintosh and Windows versions of:
        § Adobe® Illustrator® saved as .ai, .eps, or .pdf
        § Adobe® Photoshop® saved with layers as .tiff, .eps, or .psd
        § QuarkXPress ™ collect for output
        §Adobe® InDesign® and Adobe® CS® package files
    • All text in your artwork should be submitted with fonts outlined (converted to curves or paths). Note: be sure artwork is correct.
    • Editing of text will not be available with outlined fonts. If artwork is submitted with fonts, all screen and printer fonts need to be included when file is uploaded.
    • If an IBM font is used in your electronic file, the printer and screen font must be supplied.
    • Providing fonts will ensure we can make any changes to your text if necessary.
    • All photographic image files should be in CMYK format.
    • Keep design in one program - i.e. do not place image in Illustrator®, then place the Illustrator® file in QuarkXpress™.

Additional Charges:
If additional charges apply, you will be notified within 24 Hours. The most common charges are:
· Customer changes made to proofs. $15.00 minimum charge.

· A “No Proof” job that is canceled or changed in any way will result in the full cost of job being charged.

Please contact CustomerCare if you need additional information. Thank you.
